One of our members Rick Stevenson’s many projects is the restoration of a gold BJ8 he purchased in pieces. The project for this meet was to install the axle, radius arms, and rear leaf springs. Members Mike Foster and Bill Maroney spent 2 days figuring out this puzzle under Rick’s watchful eye! Everyone learned a lot!

Shown below (courtesy of Bill Maroney) and a series of pictures explaining what they learned.

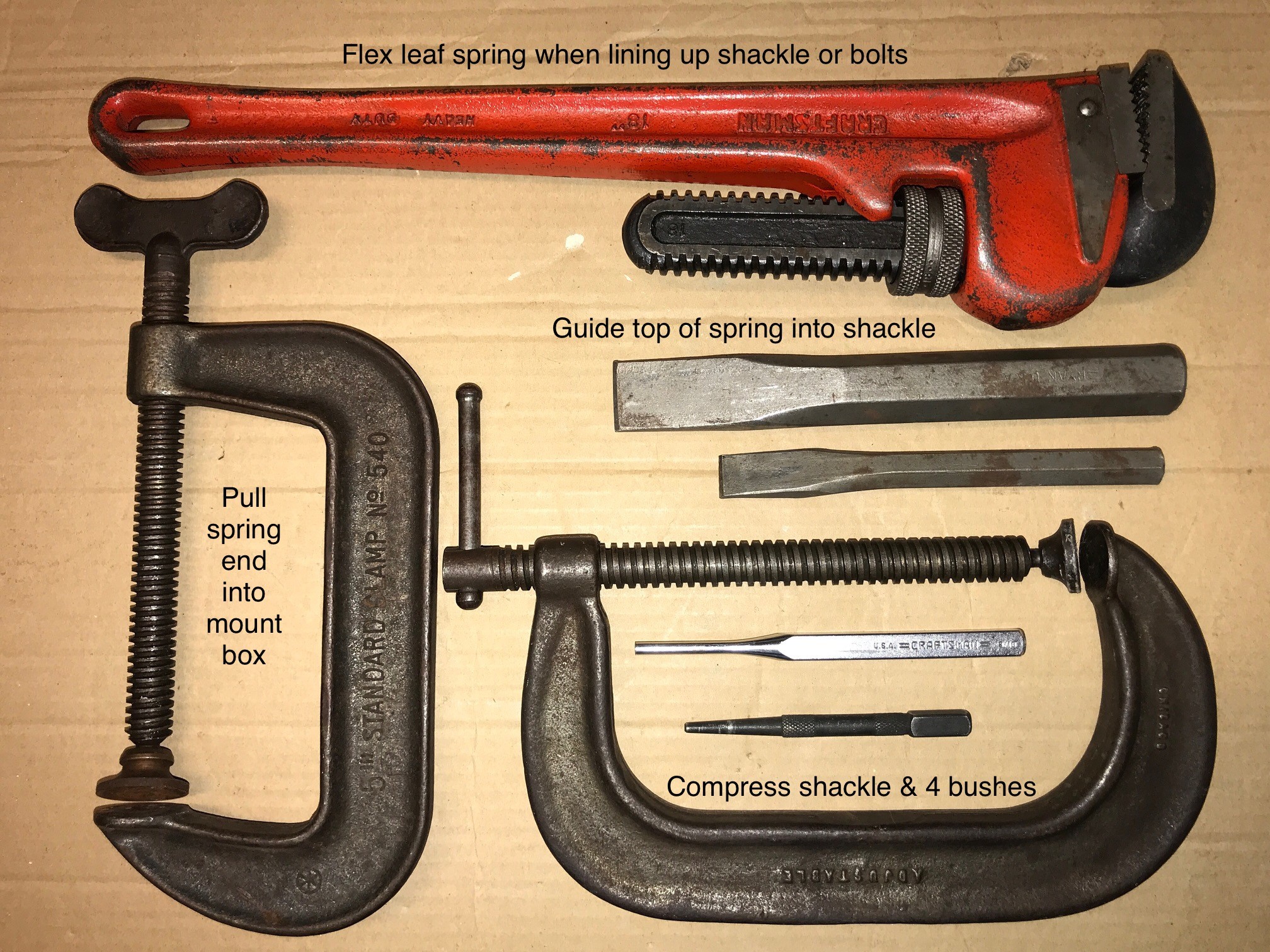

Rear end tools

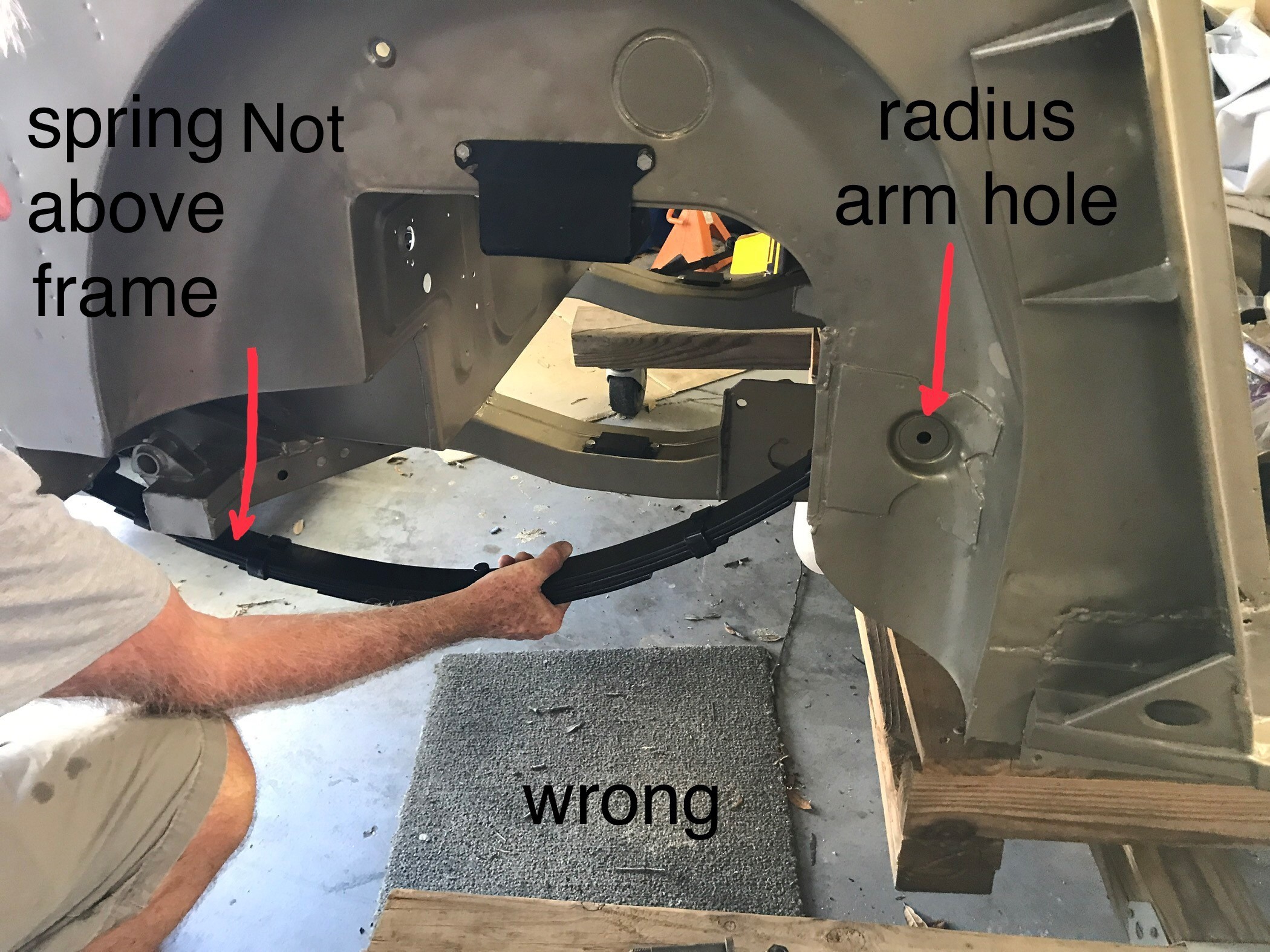

Wrong spring hole

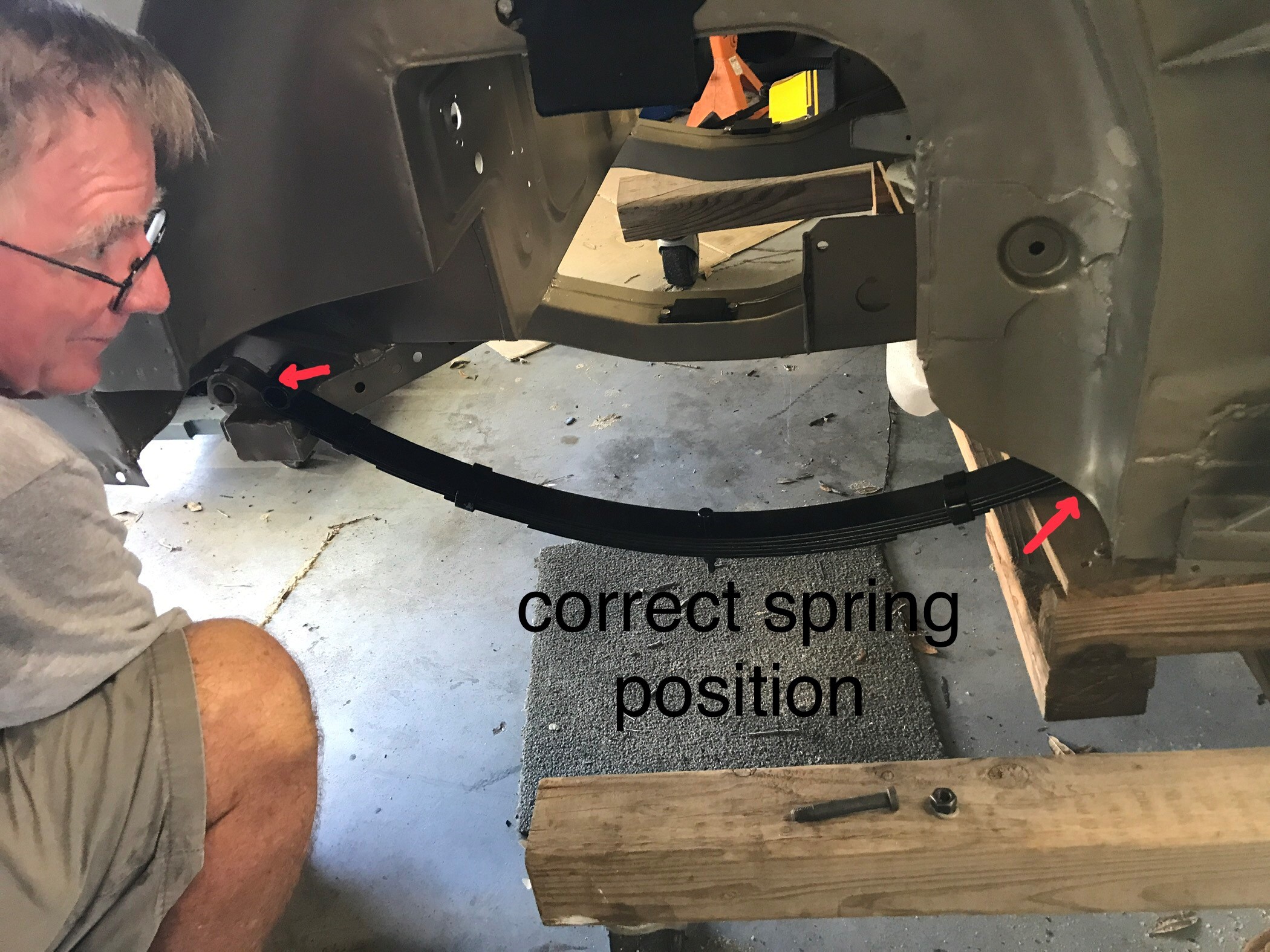

Leaf spring hole

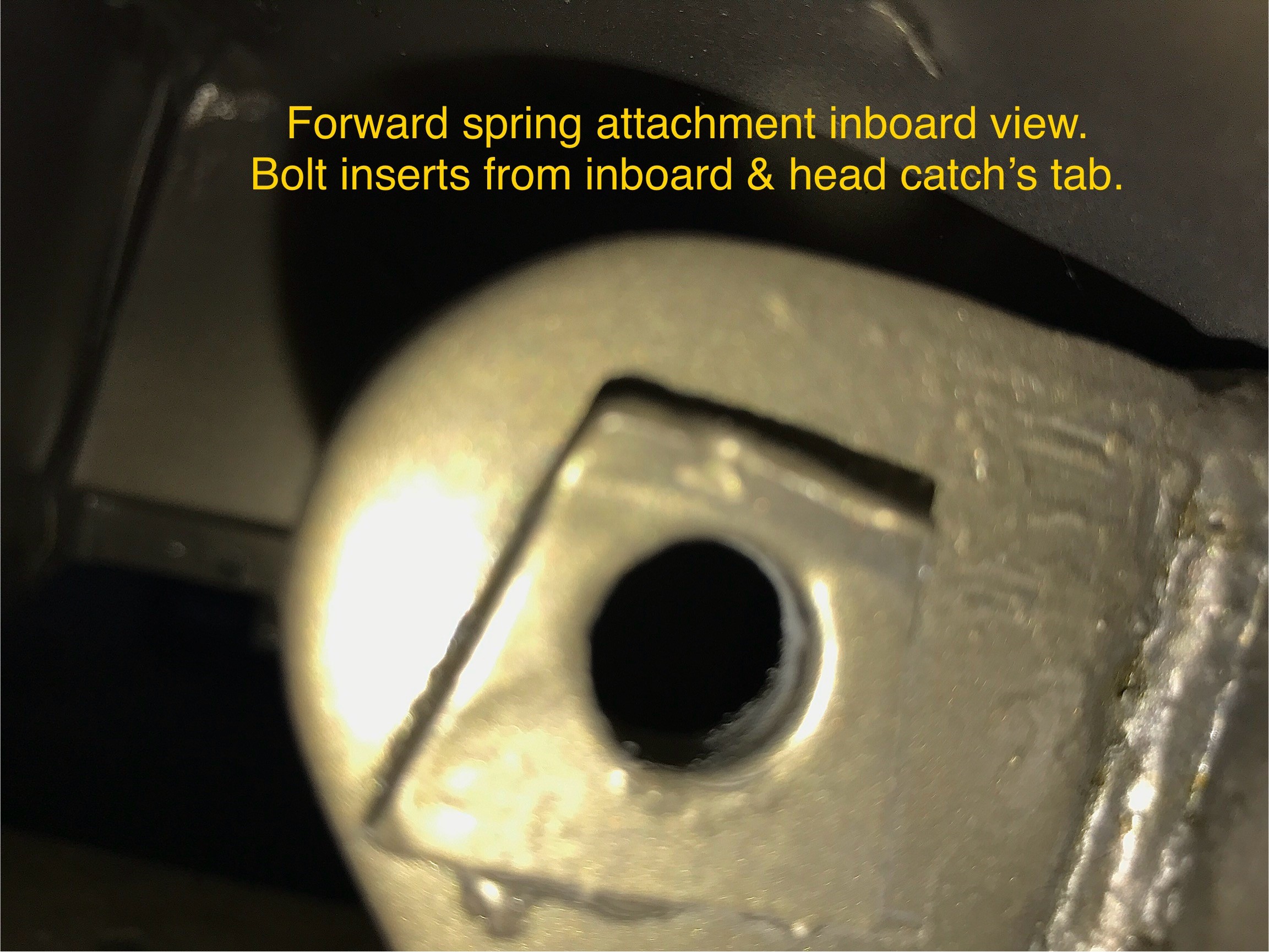

Rear end forward spring attach

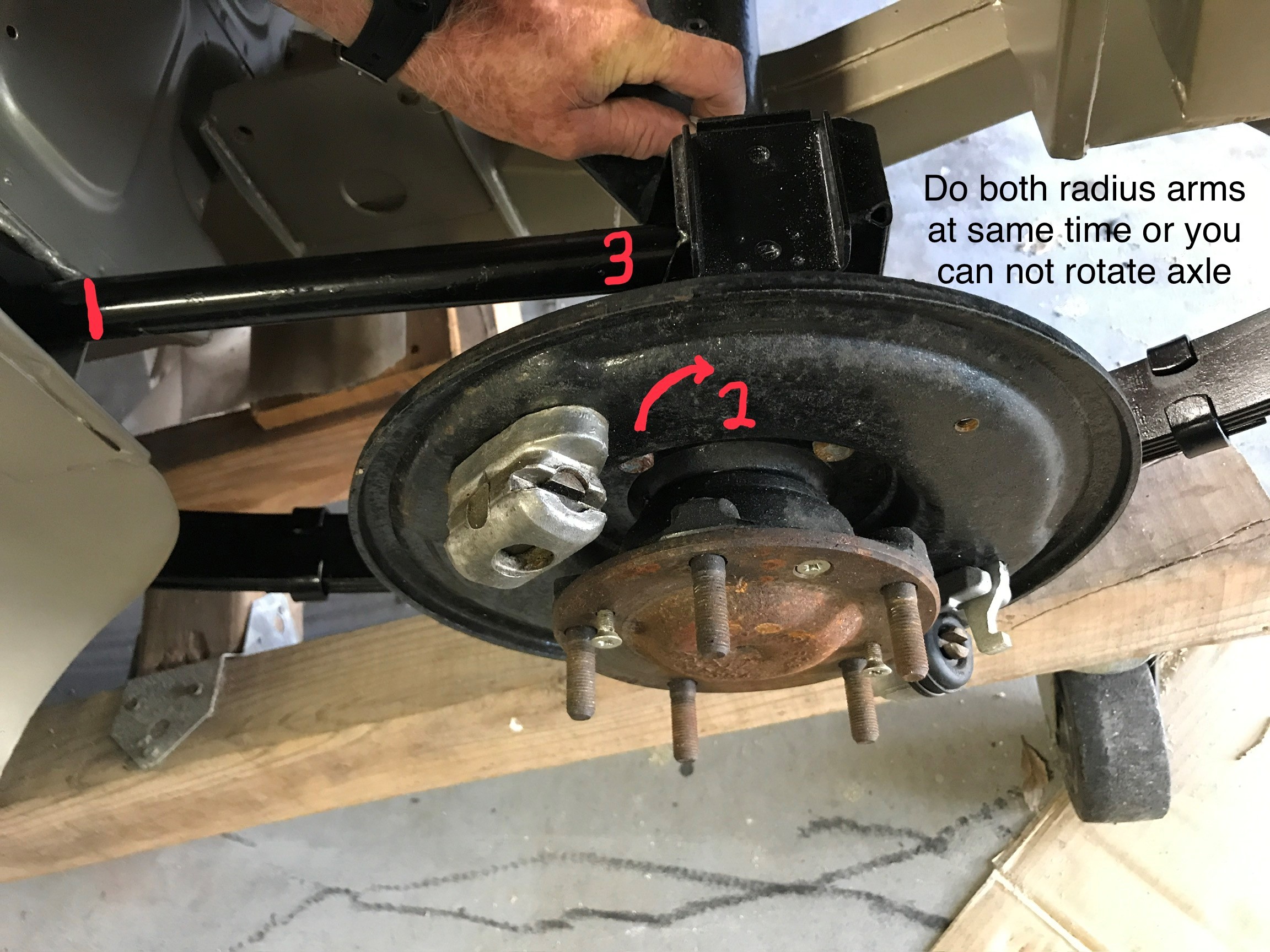

Rear end axle tip up to bolt radius arm

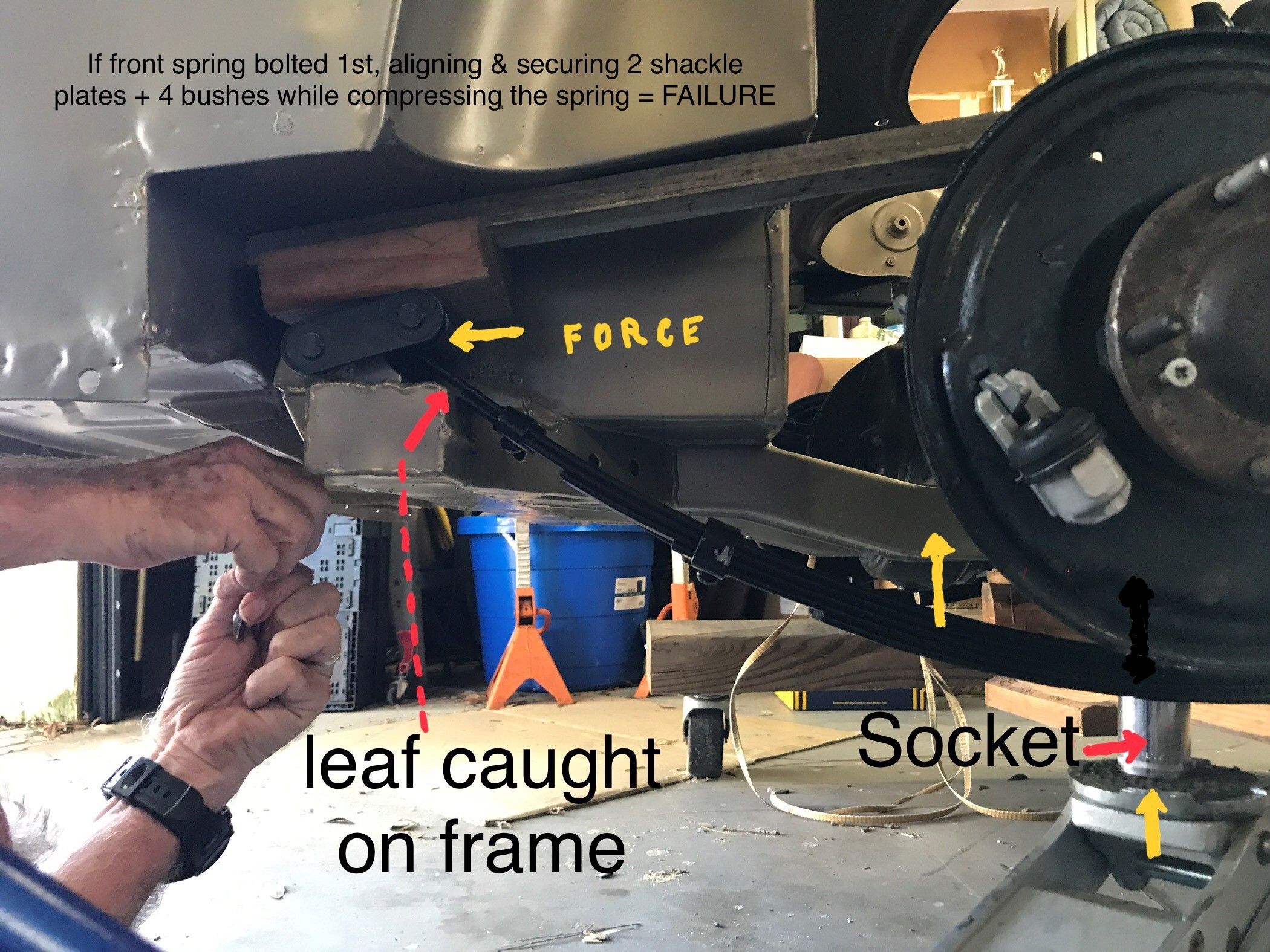

Bolt spring front but then rear fails

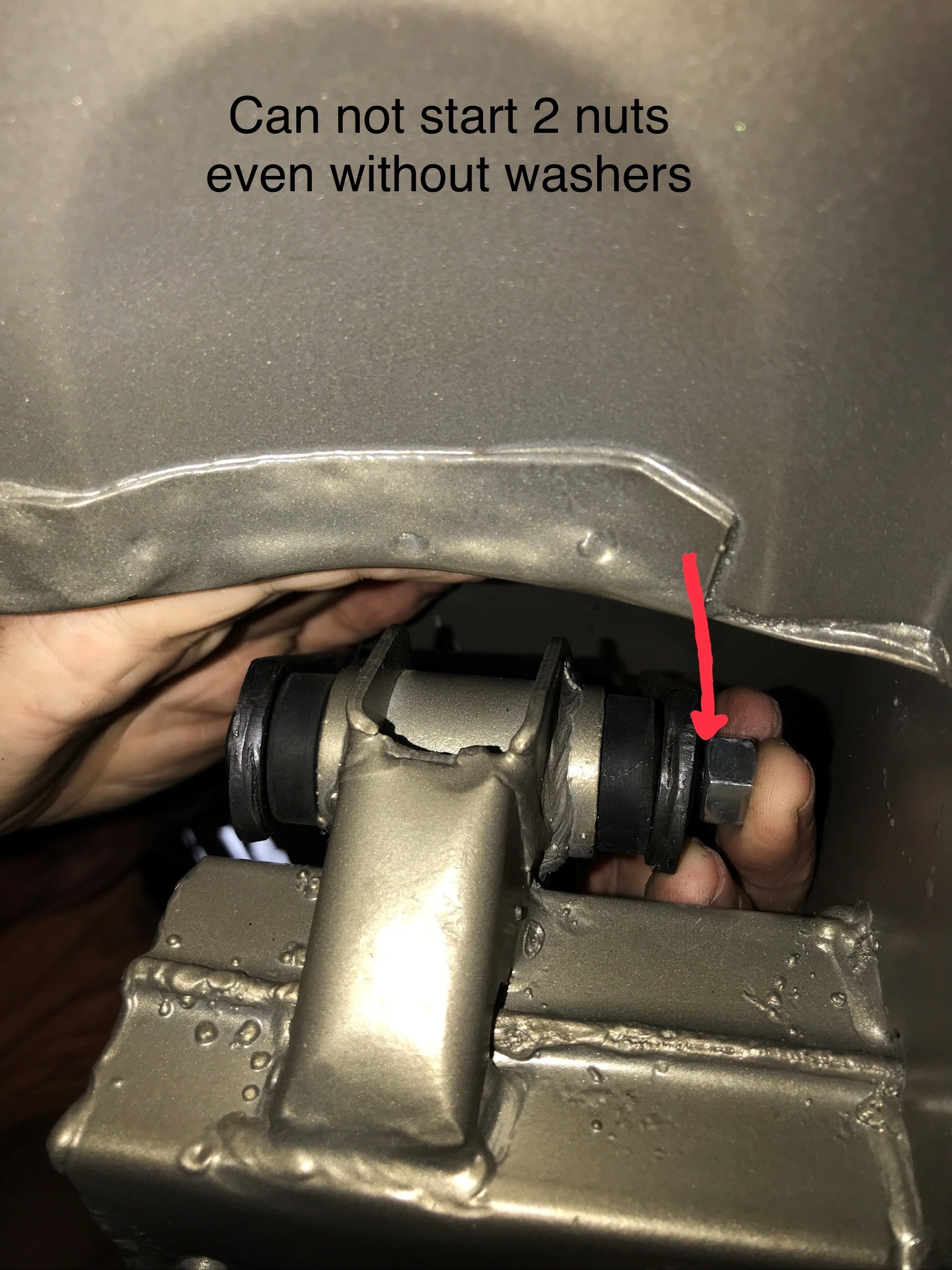

 Front spring loose but rear shackle still hard

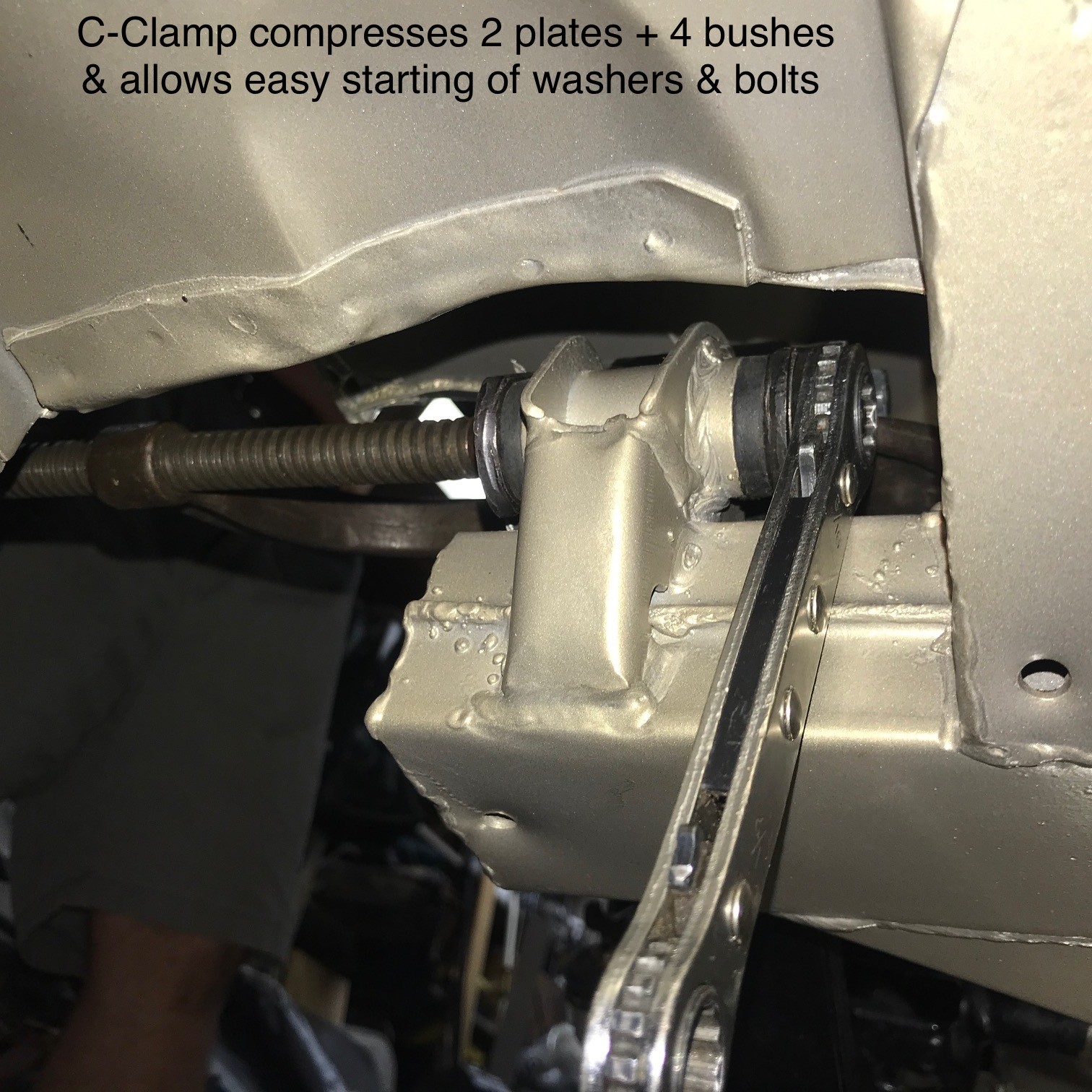

Front spring loose+C-clamp press shackle

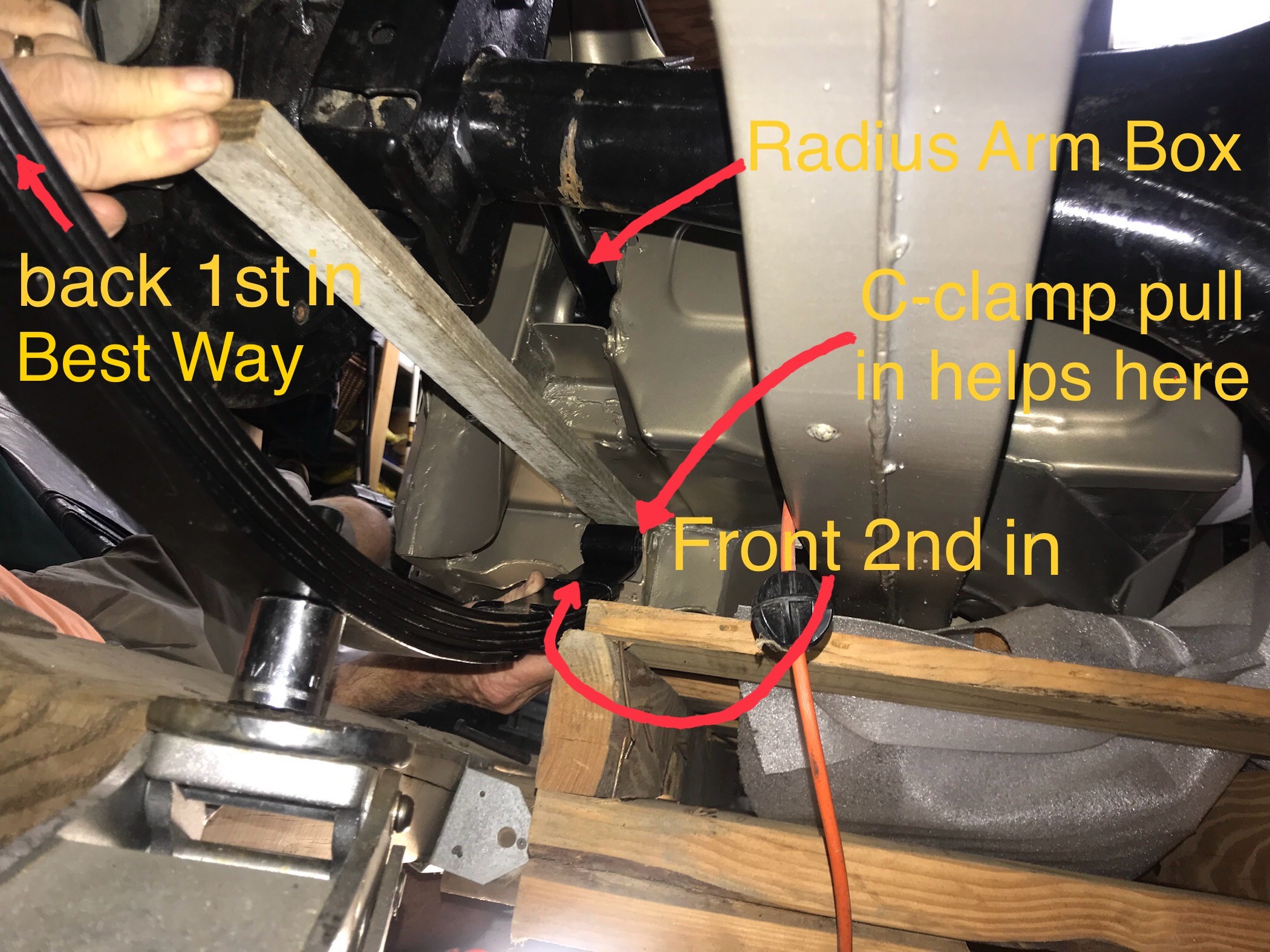

Jack+wedge +large C clamp bolts front spring



Axel&spring -2 Ubolt+2 pads+3 plates+2 jack

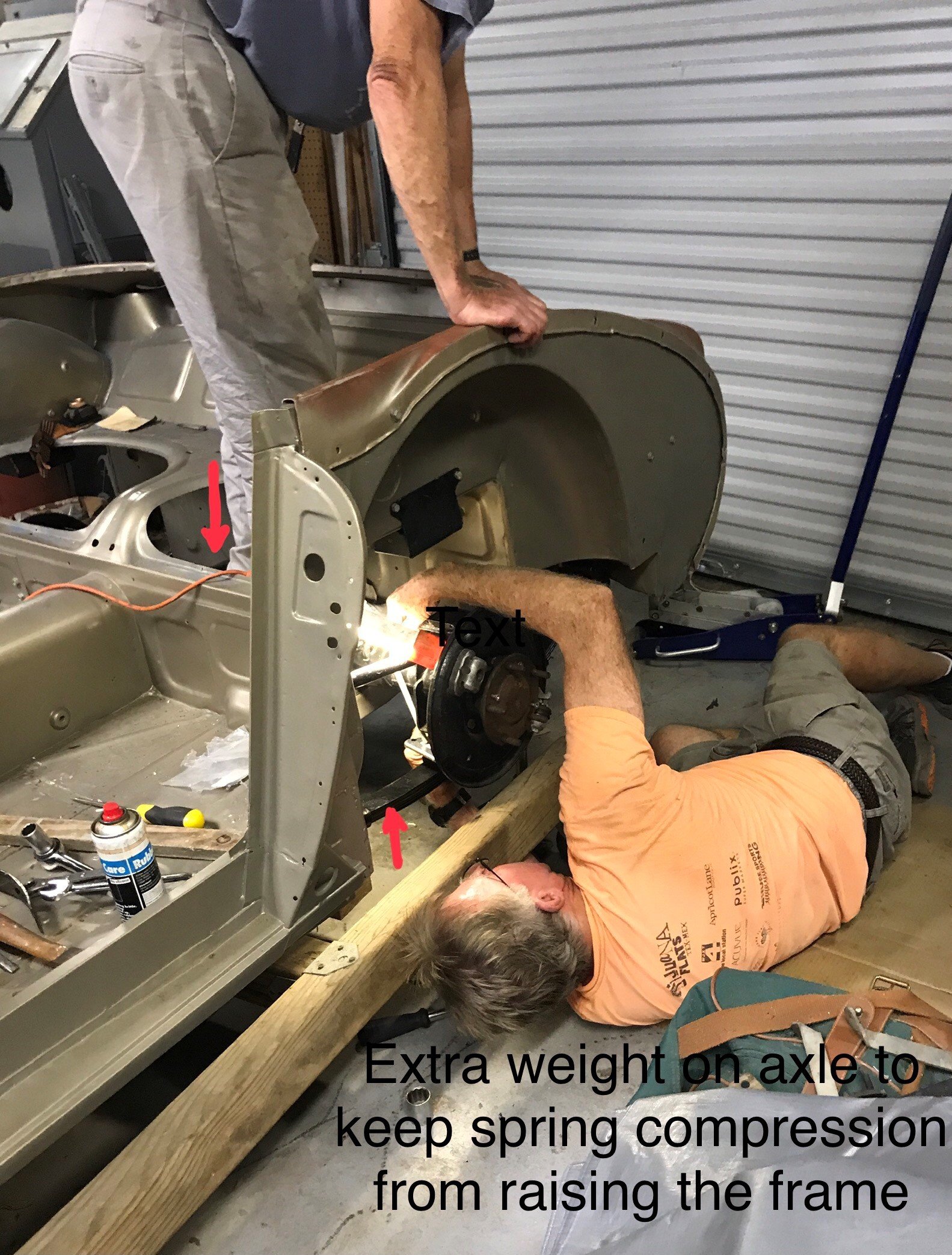

Extra weight on axel-jacks raise car before full spring compression

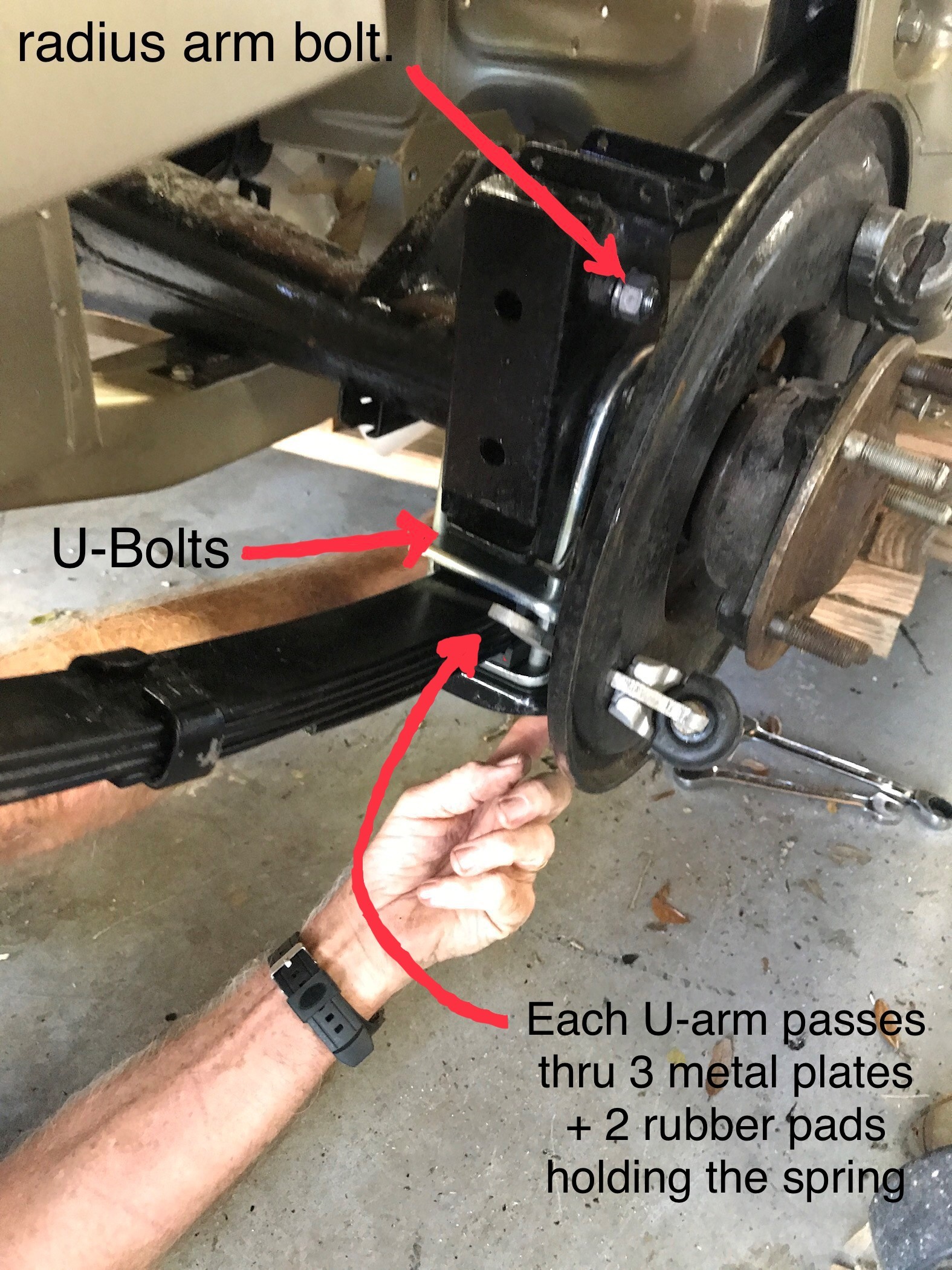

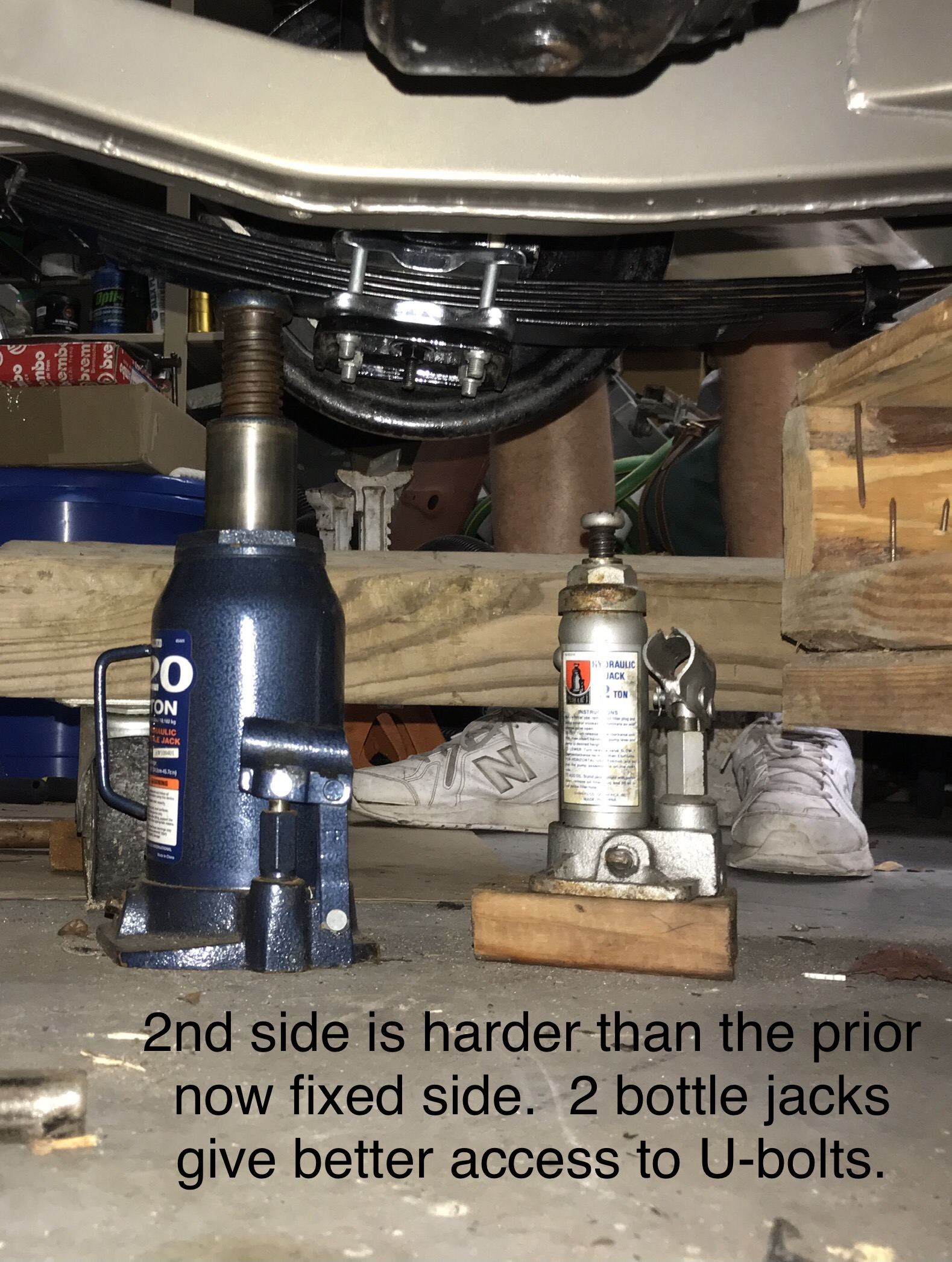

2 bottle jacks give access to Ubolts+plates



We hope that this was usefull!
